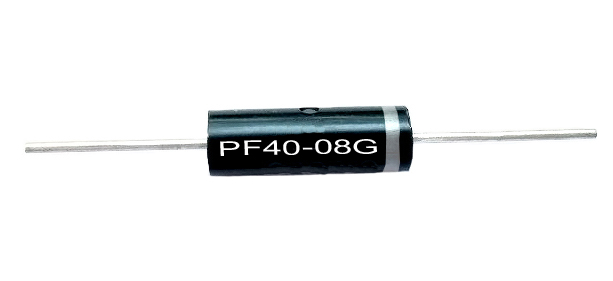

| PF 系列高压二极管 | |||
 |
本品主要用于X光机电源，激光发生器电源，电压倍增电路，微波发射电源等。 | ||
产品规格参数
产品 型号 |
反向重复 峰值电压 VRRM(kV) |
正向 平均电流 IF(AV)(mA) |
正向不重复浪涌电流 IFSM(A) | 正向 峰值电压 IF=IF(AV) VFM(V) |
反向直流电流 VR=VRRM IR(μA) |
反向 恢复时间 trr(nS) |
最高结温 Tj(℃) |
|
| Ta=25℃ | Toil=100℃ | |||||||
| PF12-20G | 20 | 120 | 50 | 40 | 5.0 | 20.0 | 100 | 120℃ |
| PF12-20J | 20 | 120 | 50 | 40 | 5.0 | 20.0 | 100 | 120℃ |
| PF20-15J | 15 | 200 | 50 | 38 | 5.0 | 20.0 | 100 | 120℃ |
| PF20-20G | 20 | 200 | 50 | 40 | 5.0 | 20.0 | 100 | 120℃ |
| PF25-12J | 12 | 250 | 50 | 32 | 5.0 | 20.0 | 100 | 120℃ |
| PF25-15G | 15 | 250 | 50 | 40 | 5.0 | 20.0 | 100 | 120℃ |
| PF30-10J | 10 | 300 | 50 | 30 | 5.0 | 20.0 | 100 | 120℃ |
| PF30-12G | 12 | 300 | 50 | 32 | 5.0 | 20.0 | 100 | 120℃ |
| PF35-10G | 10 | 350 | 50 | 30 | 5.0 | 20.0 | 100 | 120℃ |
| PF40-08G | 8 | 400 | 50 | 20 | 5.0 | 20.0 | 100 | 120℃ |
| PF40-08J | 8 | 400 | 50 | 25 | 5.0 | 20.0 | 100 | 120℃ |
| PF40-09K | 9 | 400 | 50 | 28 | 5.0 | 20.0 | 100 | 120℃ |
| PF40-15J | 15 | 400 | 50 | 32 | 5.0 | 20.0 | 100 | 120℃ |
| PF45-08G | 8 | 450 | 50 | 20 | 5.0 | 20.0 | 100 | 120℃ |
| PF45-12J | 12 | 450 | 50 | 22 | 5.0 | 20.0 | 100 | 120℃ |
| PF50-08J | 8 | 500 | 50 | 16 | 5.0 | 20.0 | 100 | 120℃ |
| PF50-10H | 10 | 500 | 50 | 25 | 5.0 | 20.0 | 100 | 120℃ |
| PF50-10J | 10 | 500 | 50 | 25 | 5.0 | 20.0 | 100 | 120℃ |
| PF80-05H | 5 | 800 | 50 | 8 | 5.0 | 20.0 | 150 | 120℃ |
| PF100-03H | 3 | 1000 | 50 | 5 | 5.0 | 20.0 | 150 | 120℃ |
| PF150-02K | 2 | 1500 | 100 | 4 | 5.0 | 20.0 | 350 | 120℃ |
| PF150-03K | 3 | 1500 | 100 | 5 | 5.0 | 20.0 | 350 | 120℃ |
| PF150-04K | 4 | 1500 | 100 | 6 | 5.0 | 20.0 | 350 | 120℃ |
| PF250-01K | 1 | 2500 | 100 | 2 | 5.0 | 20.0 | 350 | 120℃ |

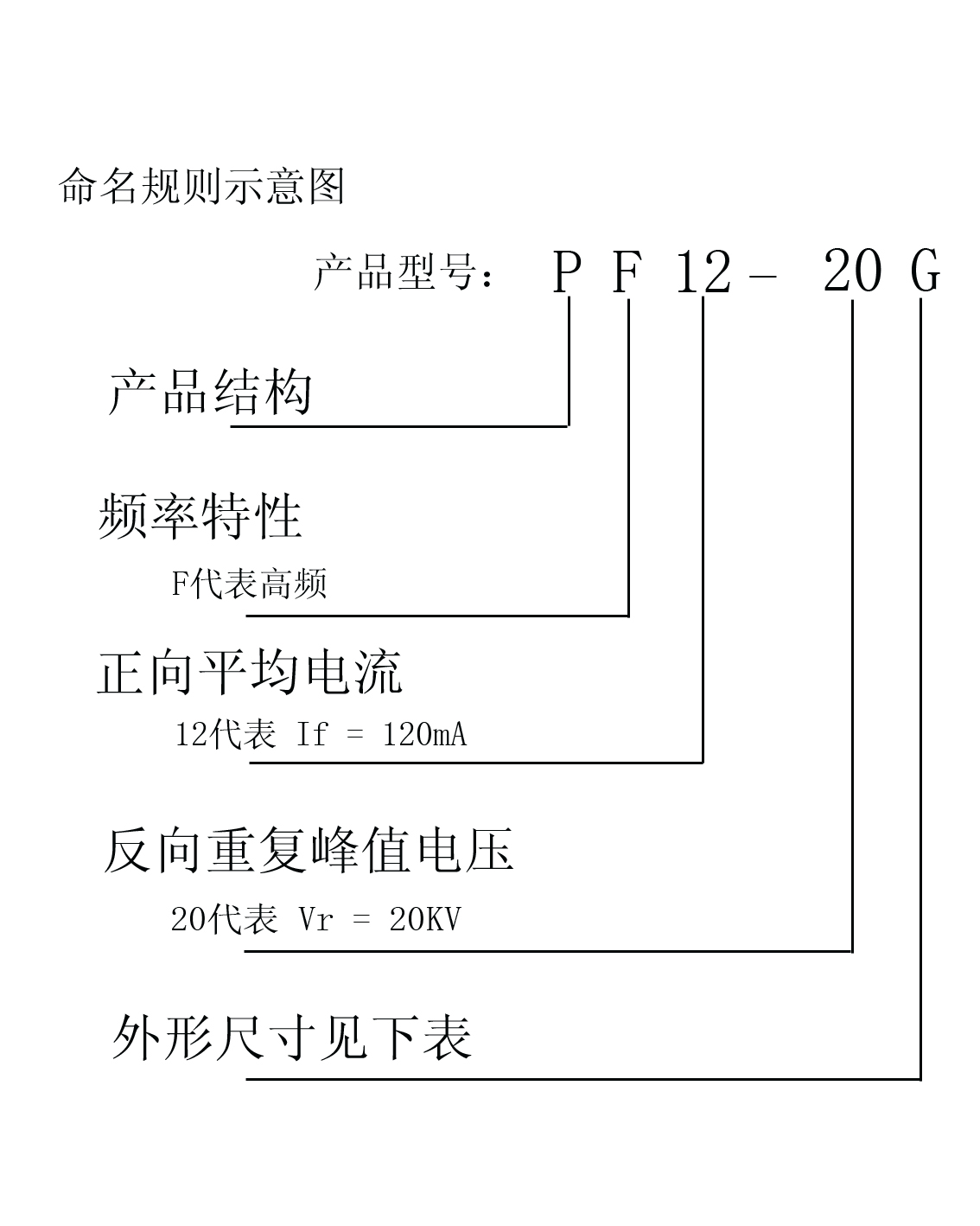

.jpg)
单位：mm
Ф1 |
L1 |
Ф2 |
L2 |
|
A |
2.0 |
3.0 |
0.5 |
25 |
B |
2.0 |
4.8 |
0.5 |
25 |
C |
2.5 |
6.5 |
0.5 |
25 |
D |
3.0 |
8.0 |
0.6 |
25 |
E |
3.0 |
10.0 |
0.6 |
25 |
F |
3.0 |
12.0 |
0.6 |
25 |
G |
4.2 |
15.0 |
0.78 |
23 |
H |
5.0 |
9.0 |
1.28 |
23 |
J |
7.0 |
21.0 |
1.18 |
20 |
K |
7.8 |
9.6 |
1.28 |
25 |
