PCB type HV subassembly
    Finds use in applications such as crude oil dewatering sets and electrostatic precipitators

  Specifications

Type

No.

 Repetitiive Peak
Reverse Voltage VRRM(kV)		 Avg.Forward
Current
IF(AV)(A)		 Peak forward
Voltage
IF=IF(AV)
VFM(V)		 D.C.reverse
Current
VR=VRRM
IR(μA)		 Maximum single cycle surge current(A)
Ta=25℃ Toil=100℃
2CL150KV/0.1A 150 0.1 180 5 50 3
2CL240KC/0.1A 240 0.1 288 5 50 3
2*2CL100KV/0.1A 2*200 0.1 2*120 5 50 3
2CL180KV/2A 180 2 216 10 100 60
2CL200KV/2A 200 2 240 10 100 60
2CL220KV/2A 220 2 268 10 100 60
2CL250KV/2A 250 2 300 10 100 60
2CL300KV/2A 300 2 360 10 100 60

  half-bridge type specification

1A Series 2A Series 3A Series

Type

No.

 Repetitiive Peak
Reverse Voltage VRRM(kV)		 Avg.Forward
Current
IF(AV)(A)		 Peak forward
Voltage
IF=IF(AV)
VFM(V)		 D.C.reverse
Current
VR=VRRM
IR(μA)		 Maximum single cycle surge current(A)
Ta=25℃ Toil=100℃
2*2CL10KV/1A 2*10 1 2*12 5 50 30
2*2CL15KV/1A 2*15 1 2*24 5 50 30
2*2CL20KV/1A 2*20 1 2*36 5 50 30
2*2CL30KV/1A 2*30 1 2*60 5 50 30
2*2CLG10KV/1A 2*10 1 2*12 5 50 30
2*2CLG15KV/1A 2*15 1 2*24 5 50 30
2*2CLG20KV/1A 2*20 1 2*36 5 50 30
2*2CLG30KV/1A 2*30 1 2*60 5 50 30

Type

No.

 Repetitiive Peak
Reverse Voltage VRRM(kV)		 Avg.Forward
Current
IF(AV)(A)		 Peak forward
Voltage
IF=IF(AV)
VFM(V)		 D.C.reverse
Current
VR=VRRM
IR(μA)		 Maximum single cycle surge current(A)
Ta=25℃ Toil=100℃
2*2CL10KV/2A 2*10 2 2*12 5 50 30
2*2CL15KV/2A 2*15 2 2*24 5 50 30
2*2CL20KV/2A 2*20 2 2*36 5 50 30
2*2CL30KV/2A 2*30 2 2*60 5 50 30
2*2CLG10KV/2A 2*10 2 2*12 5 50 30
2*2CLG15KV/2A 2*15 2 2*24 5 50 30
2*2CLG20KV/2A 2*20 2 2*36 5 50 30
2*2CLG30KV/2A 2*30 2 2*60 5 50 30

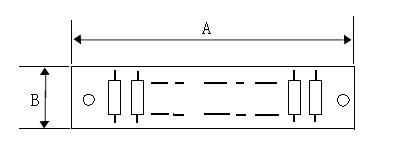

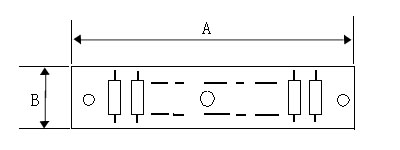

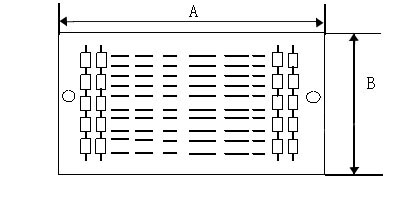

  PCB type Outline Dimensions:(Unit:mm)

Sketch map Type A
 B
2CL150KV/0.1A 112 25.5
2CL240KV/0.1A 156 25.5
2*2CL100KV/0.1A 165 25.5
2CL180KV/2A 304 84
2CL200KV/2A 304 84
2CL220KV/2A 304 84
2CL250KV/2A 304 84
2CL300KV/2A 304 84
