| PH series high voltage diode | |||
 |
Finds use in applications such as Monitors,Static electricity dust collectors,Laser power supplies,ect.. | ||
Specifications
Type No. |
Repetitiive Peak Reverse Voltage VRRM(kV) |
Avg.Forward Current Max IF(AV)(mA) |
Maximum single cycle surge current I Surge IFSM(A) |
Peak Forward VoltageIF=10(mA) VFM(V) |
D.C.reverse current VR=VRRM IR(μA) |
Reverse Recovery Time trr(nS） |
Junction Temperature Max （℃） |
|
| Ta=25℃ | Toil=100℃ | |||||||
| PH20-15J | 15 | 200 | 50 | 38 | 5.0 | 20.0 | 80 | 120℃ |
| PH20-20G | 20 | 200 | 50 | 40 | 5.0 | 20.0 | 80 | 120℃ |
| PH25-15G | 15 | 250 | 50 | 35 | 5.0 | 20.0 | 80 | 120℃ |
| PH30-10J | 10 | 300 | 50 | 26 | 5.0 | 20.0 | 80 | 120℃ |
| PH30-12G | 12 | 300 | 50 | 30 | 5.0 | 20.0 | 80 | 120℃ |
| PH35-10G | 10 | 350 | 50 | 25 | 5.0 | 20.0 | 80 | 120℃ |
| PH40-08G | 8 | 400 | 50 | 20 | 5.0 | 20.0 | 80 | 120℃ |
| PH50-08H | 8 | 500 | 50 | 20 | 5.0 | 20.0 | 50 | 120℃ |
| PH50-15G | 15 | 500 | 50 | 38 | 5.0 | 20.0 | 50 | 120℃ |

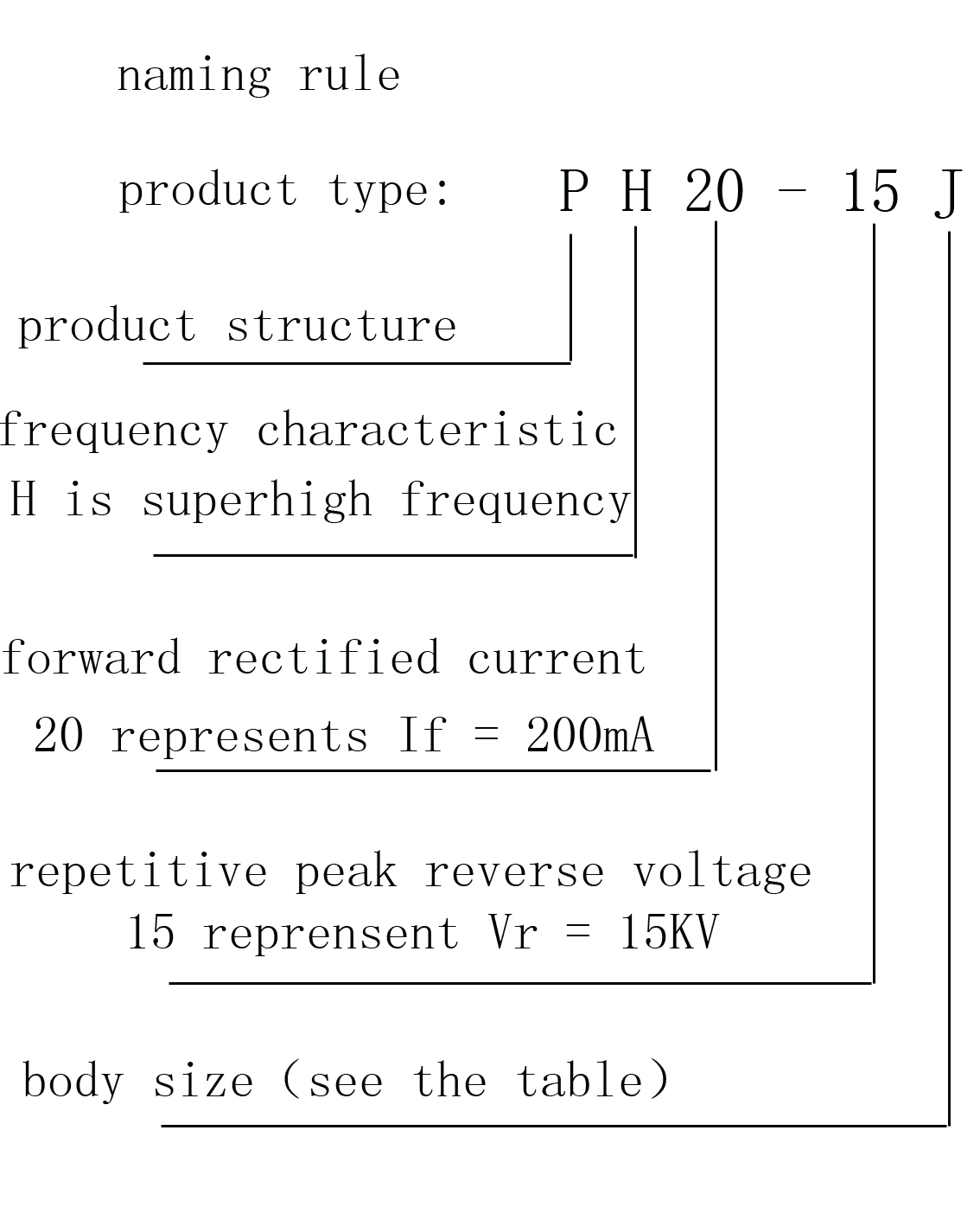

.jpg)
Unit：mm
Ф1 |
L1 |
Ф2 |
L2 |
|
A |
2.0 |
3.0 |
0.5 |
25 |
B |
2.0 |
4.8 |
0.5 |
25 |
C |
2.5 |
6.5 |
0.5 |
25 |
D |
3.0 |
8.0 |
0.6 |
25 |
E |
3.0 |
10.0 |
0.6 |
25 |
F |
3.0 |
12.0 |
0.6 |
25 |
G |
4.2 |
15.0 |
0.78 |
23 |
H |
5.0 |
9.0 |
1.28 |
23 |
J |
7.0 |
21.0 |
1.18 |
20 |
K |
7.8 |
9.6 |
1.28 |
25 |
