PH 系列高压二极管 |
|||
|
|
本品主要用于X光机电源，激光发生器电源，电压倍增电路，微波发射电源等。 |
|
|
产品规格参数
|
产品 型号 |
反向重复 |
正向 |
正向不重复浪涌电流 IFSM(A) |
正向 |
反向直流电流 |
反向 |
最高结温 |
|
|
Ta=25℃ |
Toil=100℃ |
|||||||
|

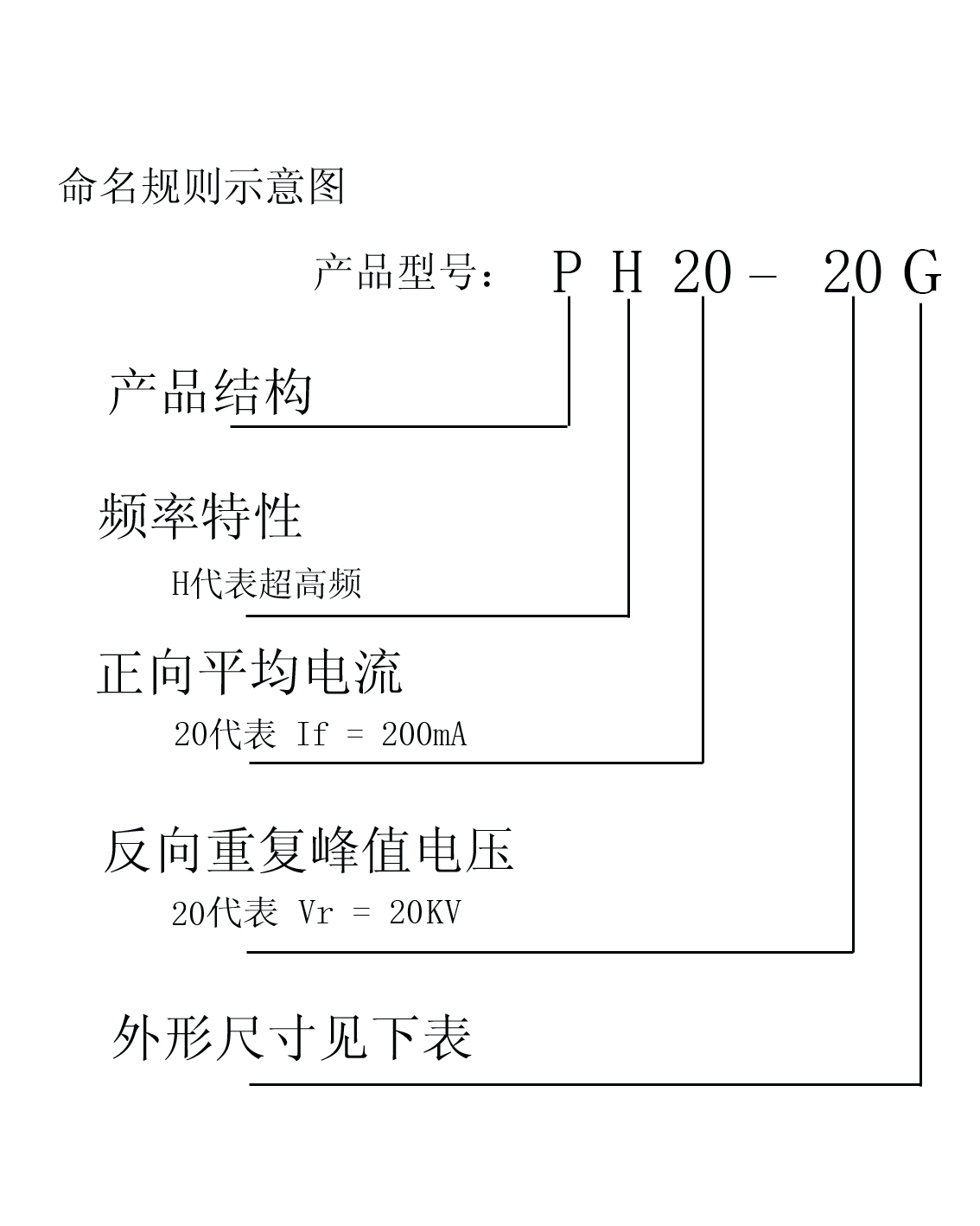

PH20-20G |
20 |
200 |
50 |
40 |
5.0 |
20.0 |
80 |
120℃ |
|
PH25-15J |
15 |
250 |
50 |
38 |
5.0 |
20.0 |
80 |
120℃ |
|
PH25-15G |
15 |
250 |
50 |
35 |
5.0 |
20.0 |
80 |
120℃ |
|
PH30-10J |
10 |
300 |
50 |
26 |
5.0 |
20.0 |
80 |
120℃ |
|
PH30-12J |
12 |
300 |
50 |
26 |
5.0 |
20.0 |
80 |
120℃ |
|
PH30-12G |
12 |
300 |
50 |
30 |
5.0 |
20.0 |
80 |
120℃ |
|
PH35-10G |
10 |
350 |
50 |
25 |
5.0 |
20.0 |
80 |
120℃ |
|
PH40-08G |
8 |
400 |
50 |
20 |
5.0 |
20.0 |
80 |
120℃ |
|
PH50-08H |
8 |
500 |
50 |
20 |
5.0 |
20.0 |
50 |
120℃ |
|
PH50-15G |
15 |
500 |
50 |
38 |
5.0 |
20.0 |
50 |
120℃ |
.jpg)
单位：mm
|
|
Ф1 |
L1 |
Ф2 |
L2 |
|
A |
2.0 |
3.0 |
0.5 |
25 |
|
B |
2.0 |
4.8 |
0.5 |
25 |
|
C |
2.5 |
6.5 |
0.5 |
25 |
|
D |
3.0 |
8.0 |
0.6 |
25 |
|
E |
3.0 |
10.0 |
0.6 |
25 |
|
F |
3.0 |
12.0 |
0.6 |
25 |
|
G |
4.2 |
15.0 |
0.78 |
23 |
|
H |
5.0 |
9.0 |
1.28 |
23 |
|
J |
7.0 |
21.0 |
1.18 |
20 |
|
K |
7.8 |
9.6 |
1.28 |
25 |
